Introduction to the core board：
RK3128CV4 is a cost-effective core board based on Rockchip RK3128. It is a low-cost A7 quad-core
, High cost performance core board with main frequency 1.3GB. RK3128 integrates Mali-400 MP2 graphics processor, supports OpenGL ES1.1/2.0, embedded high-performance 2D hardware acceleration, and can achieve 1080P H.265 video hard decoding and H. 264 video encoding, and Antutu runs more than 14000 points, with good performance, and its extremely low cost highlights its super high cost performance.
The RK3128CV4 core board is widely used in human-computer interaction, intelligent control systems, portable handheld projectors, set-top boxes, medical, automotive, POS and other fields. It is especially suitable for cost-sensitive application scenarios with high performance requirements.
Core board appearance：

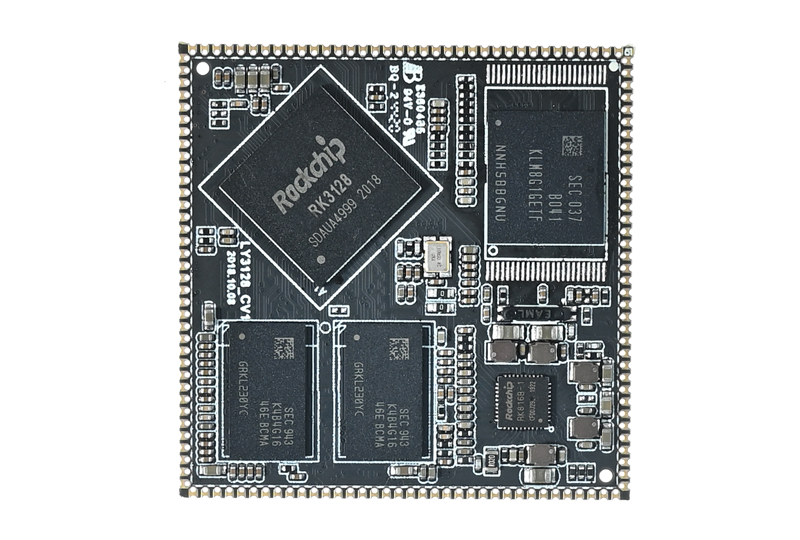

3128 core board front

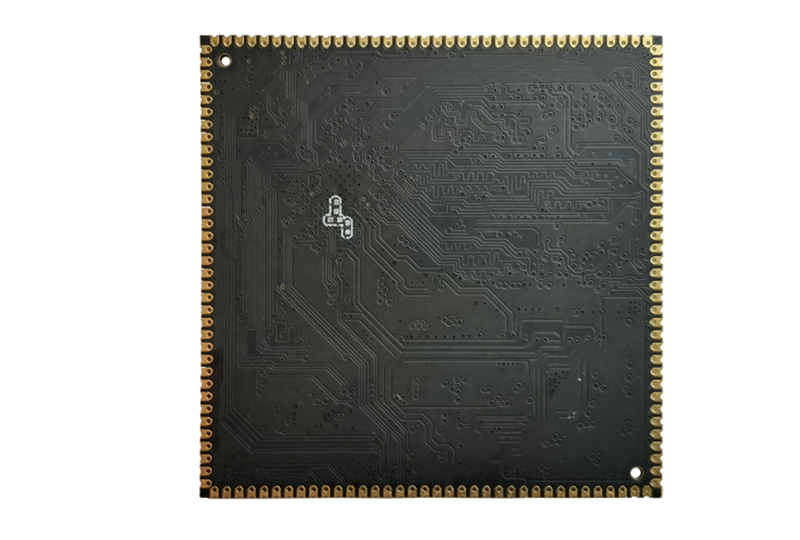

3128 core board back

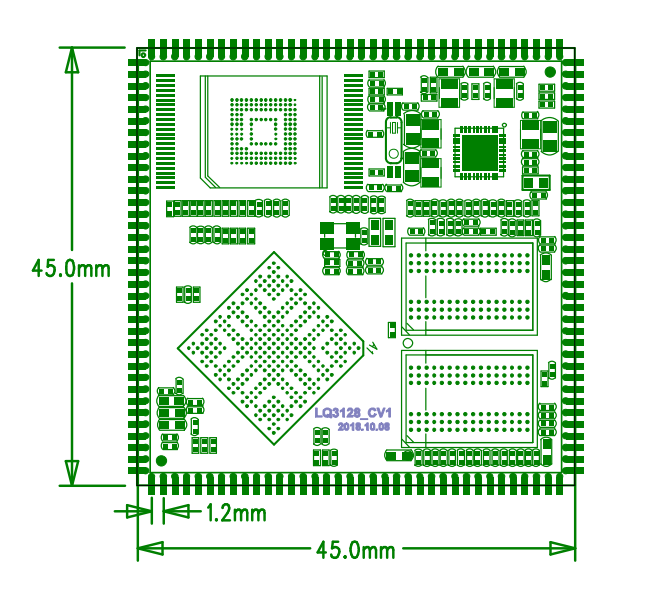

3128 core board structure and size drawing
|
系统配置
|
|
CPU
|
RK3128
|
|
主频
|
A7四核1.3GHz
|
|
内存
|
标配1GB，可定制2GB及512MB
|
|
存储器
|
标配8GB EMMC，可选配nand flash
|
|
电源IC
|
使用RK816，支持动态调频
|
|
|
接口参数
|
|
LCD接口
|
TTL、LVDS、MIPI接口三选一
|
|
Touch接口
|
电容触摸，可使用USB或串口扩展电阻触摸
|
|
音频接口
|
AC97/IIS接口，支持录放音
|
|
SD卡接口
|
2路SDIO输出通道
|
|
emmc接口
|
板载emmc接口，管脚不另外引出
|
|
以太网接口
|
支持千兆以太网
|
|
USB HOST接口
|
1路HOST2.0
|
|
USB OTG接口
|
1路OTG2.0
|
|
UART接口
|
3路串口，2路带流控，1路用于DEBUG
|
|
PWM接口
|
3路PWM输出
|
|
IIC接口
|
4路IIC输出
|
|
SPI接口
|
1路SPI输出
|
|
ADC接口
|
3路ADC输入
|
|
Camera接口
|
1路BT656/BT601
|
|
HDMI接口
|
高清音视频输出接口，LCD和HDMI二选一
|
|
启动配置接口
|
无需启动配置，核心板自动适配
|
|
|
电气特性
|
|
输入电压
|
4.8~5.5V(推荐使用5V输入)
|
|
输出电压
|
3.3V/4.2V(可用于底板供电及电池充电)
|
|
工作温度
|
-10~70度
|
|
储存温度
|
-10~80度
|
|
|
核心板结构参数
|
|
外观
|
邮票孔方式
|
|
核心板尺寸
|
45mm*45mm*3mm
|
|
引脚间距
|
1.2mm
|
|
引脚焊盘尺寸
|
1.8mm*0.7mm
|
|
引脚数量
|
144PIN
|
|
板层
|
6层
|
|
核心板管脚定义见“维基教程”
