Introduction to the core board:
The LQ3288 core board is a core board based on Rockchip RK3288, which is independently developed, produced and sold by Luoshiqi Technology Co., Ltd. A17 quad-core, clocked at 1.8GHz, widely used in set-top boxes, flat-screen TVs, smart homes, smart cities, security and other fields.
Core board appearance:

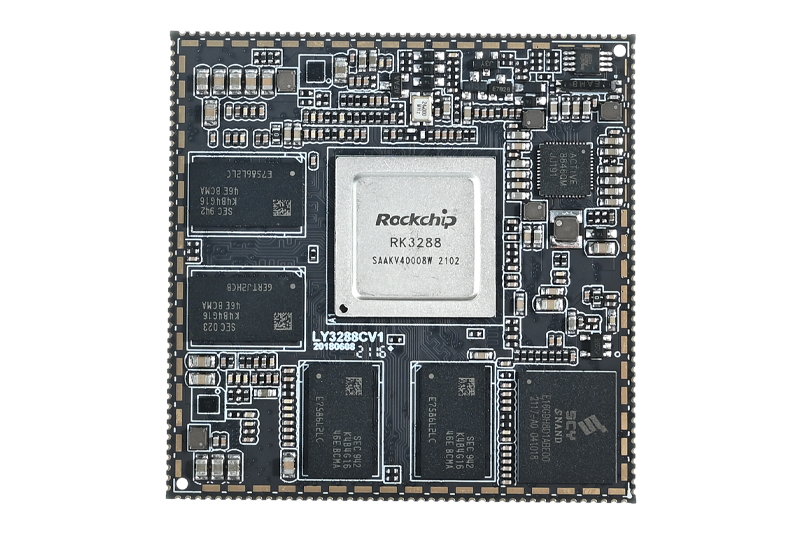

3288 core board front

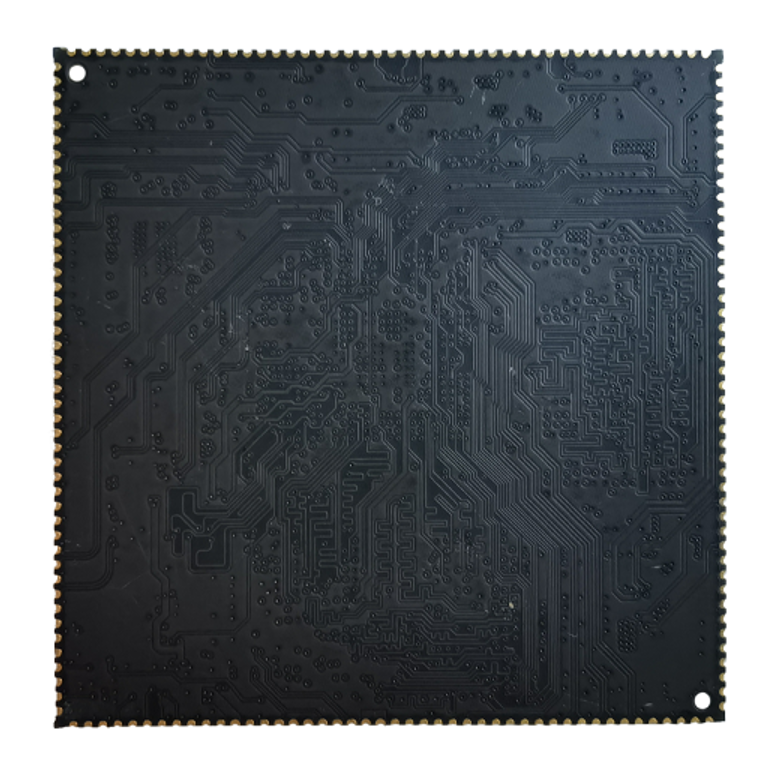

3288 core board back

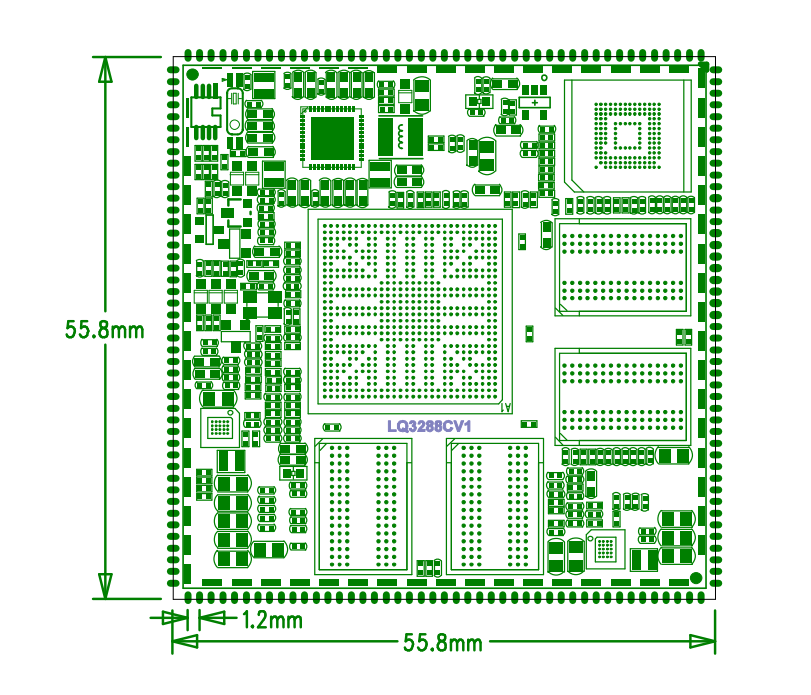

3288 structure and size chart
Core board characteristic parameters:
| System Configuration |
|---|
| CPU | RK3288 |
|---|
| Main frequency | A17 quad core 1.8GHZ |
|---|
| RAM | Standard 2GB, 4GB can be customized |
|---|
| Memory | 4GB/8GB/16GB emmc optional, standard 16GB |
|---|
| Power IC | Use ACT8846, support dynamic frequency modulation |
|---|
|
|---|
| Interface parameters |
|---|
| LCD interface | Support TTL, LVDS, MIPI interface output at the same time |
|---|
| Touch interface | Capacitive touch, USB or serial port can be used to extend resistive touch |
|---|
| audio port | AC97/IIS interface, support recording and playback |
|---|
| SD card interface | 2 SDIO output channels |
|---|
| emmc interface | Onboard emmc interface, the pins are not led out separately |
|---|
| Ethernet interface | Support Gigabit Ethernet |
|---|
| USB HOST interface | 2 channels HOST2.0 |
|---|
| USB OTG interface | 1 channel OTG2.0 |
|---|
| UART interface | 4 serial ports, support serial ports with flow control |
|---|
| PWM interface | 2 PWM outputs |
|---|
| IIC interface | 4 IIC outputs |
|---|
| SPI interface | 1 SPI output |
|---|
| ADC interface | 1 ADC output |
|---|
| Camera interface | 1 BT656/BT601, 1 MIPI output |
|---|
| HDMI interface | High-definition audio and video output interface, audio and video synchronous output |
|---|
| VGA interface | Use LCD output interface expansion |
|---|
| Start the configuration interface | No need to start configuration, the core board automatically adapts |
|---|
|
|---|
| Electrical characteristics |
|---|
| Input voltage | 3.7~5.5V (5V input is recommended) |
|---|
| The output voltage | 3.3V/4.2V (can be used for baseboard power supply and battery charging) |
|---|
| Operating temperature | -10~70 degrees |
|---|
| Storage temperature | -10~80 degrees |
|---|
|
|---|
| Structural parameters |
|---|
| Exterior | Stamp hole method |
|---|
| Core board size | 55.8mm*55.8mm*3mm |
|---|
| Pin pitch | 1.2mm |
|---|
| Pin pad size | 1.8mm*0.7mm |
|---|
| Number of pins | 180PIN |
|---|
| Layer | 8 floors |
|---|
For the definition of core board pins, please refer to 'Wiki Tutorial'
